Setting up a cover image for your blog template with Gatsby and MDX

Back

Problem

When experimenting with a new install of Gatsby with MDX, I was running into the following issue:

error There was an error in your GraphQL query:

Field "featuredImage" must not have a selection since type "String" has no subfields.

This can happen if you e.g. accidentally added { } to the field "featuredImage". If you didn't expect "featuredImage" to be of type "String" make sure that your input source and/or plugin is correct.
However, if you expect "value" to exist, the field might be accessible in another subfield. Please try your query in GraphiQL and use the GraphiQL explorer to see which fields you can query and what shape they have.

It is recommended to explicitly type your GraphQL schema if you want to use optional fields. This way you don't have to add the mentioned
"dummy content". Visit our docs to learn how you can define the schema for "undefined":
https://www.gatsbyjs.org/docs/schema-customization/#creating-type-definitions

Solution

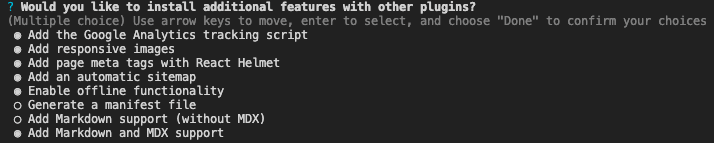

It turns out that when you run a new Gatsby install with npm init gatsby it will ask you a series of questions to help you configure your installation. At one point you're asked if you want to install (among other features) "responsive images".

I selected this option, but the installer, as of this writing, installs gatsby-plugin-image (opens in a new tab) which is the intended follow-up plugin to the default gatsby-image and is currently still in beta. This is what leads to the issue above.

(Why is the npm init gatsby command including a library which is in beta? I don't know.)

As you'll be able to find on the gatsby-plugin-image npm page (opens in a new tab), the syntax compared to gatsby-image changes slightly. This means that following the default Gatsby tutorial "Working with images" (opens in a new tab) won't work without some slight modifications.

Here are those modifications:

import React from "react"
import { graphql } from "gatsby"
import Layout from "../components/layout"
- import Img from "gatsby-image"
+ import { GatsbyImage, getImage } from "gatsby-plugin-image"

export default function BlogPost({ data }) {
- let post = data.markdownRemark
+ const { mdx } = data // data.markdownRemark holds your post data
+ const { frontmatter, body } = mdx
+ const imageData = getImage(frontmatter.featuredImage)

- let featuredImgFluid = post.frontmatter.featuredImage.childImageSharp.fluid

  return (
    <Layout>
      <div>
        <h1>{post.frontmatter.title}</h1>
-       <Img fluid={featuredImgFluid} />
        <GatsbyImage image={imageData} alt="Plant"/>
        <div dangerouslySetInnerHTML={{ __html: post.html }} />
      </div>
    </Layout>
  )
}

export const query = graphql`
  query PostQuery($slug: String!) {
-   markdownRemark(fields: { slug: { eq: $slug } }) {
+   mdx(frontmatter: { slug: { eq: $slug } }) {
      html
      frontmatter {
        title
        featuredImage {
          childImageSharp {
-           fluid(maxWidth: 800) {
-             ...GatsbyImageSharpFluid
-           }
+         gatsbyImageData(maxWidth: 800, layout: FLUID, placeholder: TRACED_SVG)
          }
        }
      }
    }
  }
`
