Outliner Design Patterns
This is an overview of the design patterns that are commonly used in outliner software. You can view a comprehensive list of outliners here.
This is a working document
Last updated 2020-01-05
We want to be able to easily view, navigate and manipulate the hierarchy of a collection of items. Classical word processors only offer a linear display of the text.
Nesting is the affordance of putting something in or under something else and having it displayed as a subordinate of that item, usually through indentation. Classically windows would display such a relationship with a plus and mac with an arrow.
Nested items can be promoted or demoted in the hierarchy, usually by adjusting their indentation accordingly. Modern outliners allow this to be done through the Tab and Shift + Tab keyboard shortcuts.
Collapsing is the affordance of allowing the user to hide an item's subordinate items, only displaying the top-level item. Usually this is paired with some type of state change in the top level's icon indicating that it contains hidden subordinate items.
It is difficult to discern the structure of the hierarchy represented by the outline through indentation alone. Applying styling which is consistent across outline levels can help emphasize the structure, but can be tedious to apply when each level needs to be styled independently.
Afford the user the option to define styles on a heading level. This is similar to what we're used to seeing in word processors, but isn't often seen in outliners.
We might want to convey a structure within our outline, through styling, which doesn't map onto the hierarchy (and possible hierarchy-based styling).
Some outliners include options for changing the font size and text decoration irrespective of the outline level.
We want to include a comment or meta-information about an item within the outline without editing the item's contents itself.
Afford the user the option to add a meta-level comment on each item across the hierarchy.
Having only one type of entity at their disposal prevents a user from structuring their notes hierarchically or by delineating between different classes of entities.
Allow for multiple entities to be used in the hierarchy. The Mac Finder, for example, allows you to use folders and files. A file can live inside a folder, nothing can live inside a file and different types of files exist.
The entity in the outline might have additional attributes that cannot be displayed in the outline itself.
Afford the user the ability to add additional columns to the outline to display otherwise hidden attributes.
A small amount of allowed hierarchy levels may not be enough to fully represent some information.
Allow infinite levels of outlining.
Within a tree / file cabinet metaphor, the note entities are stored at a location within some abstraction. The file system and the explorer / finder are the default paradigms for navigating files across platforms. Allowing for manipulation of the hierarchy's highest level, therefor, amounts to manipulating individual files. Manipulation at the file-level, however, may not be something that is afforded to the user.
Integrate the file-level view into the outliner.
Sometimes we would like to work with outlines as the entities themselves and view and manipulate a hierarchy of such entities.
When text spans more than a single line, it can clutter the hierarchical overview.
Folding limits the space a line takes up to 1 line by truncating it.
A hierarchical or textual view of our notes often doesn't give us the perspective or context necessary.
We want to be able to take information we find outside of our note taking tool and bring it into our notes.
Use a separate tool or a browser extension to "clip" content and send it back to the outliner.
Sometimes a sub-item warrants a separate entity with its own outline, or conversely, sometimes the header of a note is better suited as a sub-item of another. When a note's title isn't part of the hierarchy, it becomes cumbersome to demote it to a bullet point.
Ability to promote and demote between outline items and the note header.
We want to link to external resources.
We want to be able to indicate that two ideas are connected and easily navigate between the two within our notes.
Afford the user the ability to link to an item within the existing outline (or another outline if supported).
Identifying the location to be linked to can become cumbersome in and of itself. Other outliners have implemented Media-Wiki-style link auto-suggestions to aid in the process.
You want an item to exist in two different outlines at the same. Said differently, you have a concept which has multiple parent concepts.
The solution can be analogous to an "alias" in file systems.
You want to perform an operation on a non contiguous group of items.
Allow the user to search for items that match certain criteria, which results in a selection which can then be moved or promoted / demoted.
You want to work on part of an outline without experiencing the distractions and increased cognitive load involved with having irrelevant parts of the outline in view.
A location in the outline can be "hoisted", which displays the item and its subordinates as if they were the only items in the outline.
When you've opened up a long or complex hierarchy, or set or hierarchies, you can lose track of which piece of content corresponds to which hierarchy level.

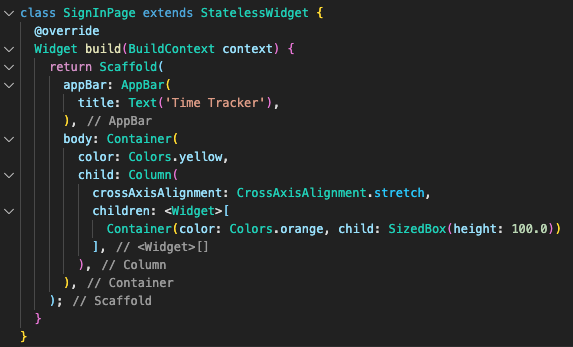

An indication can be added to the end of the hierarchical block which repeats the information about which hierarchy it pertains to usually found at the top of the hierarchy block
